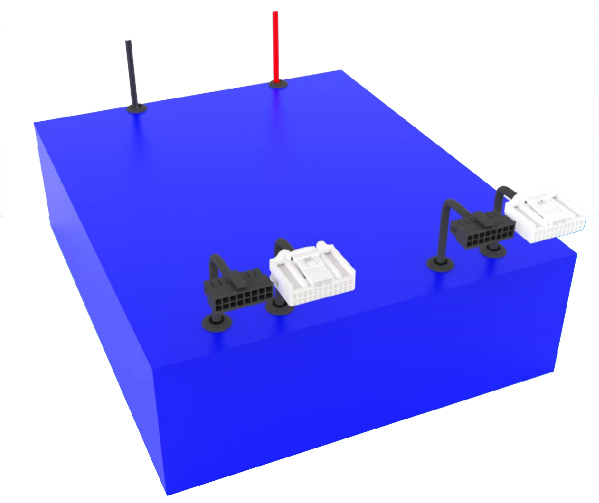

For Saudi Arabia’s road CCTV operators, the biggest challenges in outdoor surveillance power are extreme temperature swings, frequent maintenance downtime, and the need for 24/7 uninterrupted power. The EcoLite LTO 50.4V 40Ah LTO Battery pack is engineered to solve these pain points—built with Lithium Titanate (LTO) technology, it delivers unmatched reliability, durability, and performance for road monitoring systems in Saudi Arabia’s harsh environmental conditions. As a dedicated LTO Battery pack for CCTV, it’s designed to keep your surveillance cameras running smoothly, even in remote or extreme-heat locations.
| Electrical Parameters | |
| Nominal Voltage | 50.2V |
| Rated Capacity | 9Ah |
| Energy | 475.2Wh |
| Resistence | ≤100mΩ |
| Efficiency | ≥0.98 |
| Cycle life | >10000cycles Remaining capacity>80% |
| Max.Modules in Series/Parallel | 22S/6P |
| Mechanical Parameters | |
| Dimension(W×D×H) | 215mm×261mm×75mm |
| 8.46''×10.28''×2.95'' | |
| Weight | 7kg |
| Terminal Type | 43025-1600,501646-2400 |
| Battery Housing | Exoxy board+PVC |
| NTC Number | |
| Cell Type-Chemistry | LTO |
| Communication | According to BMS |
| Discharge Parameters | |
| Continuous Discharge Current | 9A |
| Pulse Discharge Current | 60A(<2S),50A Fuse |
| Recommended Volt. Disconnect | 33V |
| BMS Discharge Cut-off Voltage | 35.2V According to BMS settings |
| Reconnect Voltage | 39.6V According to BMS settings |
| Short Circuit Protection | According to BMS settings |
| Charge Parameters | |
| Charge Method | CC-CV |
| Charge Voltage | 60.5V~61.6V |
| Recommended Float Voltage | 59.4~60.5V |
| Recommended Charge Current | 9A |
| Maximum Charge Current | 30A |
| BMS Charge Cut-off Voltage | 61.6V According to BMS settings |
| Temperature Parameters | |
| Discharge Temperature | -40℃ to 50 ℃ |
| Charge Temperature | -40℃ ℃to 65 ℃ |
| Storage Temperature | 0℃ to 45 ℃ |
| BMS High Temperature Cut-off | 65℃ |
![]()
The Safest Lithium Technology Available:
Experience true peace of mind. Unlike other lithium-ion batteries, our LTO Battery Pack utilizes inherently stable Lithium Titanate chemistry, drastically reducing risks of thermal runaway and making this the safest LTO Battery Pack for your workforce and facilities.
Unprecedented Cycle Life, Drastically Lower TCO:
Maximize your return on investment. This LTO Battery Pack is engineered to withstand over 10,000 cycles while retaining more than 80% of its capacity. This exceptional longevity means this specific LTO Battery Pack outlasts conventional batteries by years, significantly reducing your total cost of ownership and frequency of replacement.
Rapid Charging for Maximum Uptime:
Keep your AGVs and robots in motion. Designed for high-current input, this LTO Battery Pack can be charged at up to 30A, slashing recharge times and enabling rapid turnaround in 24/7 operational environments. The efficiency of this LTO Battery Pack ensures more energy is stored, not wasted as heat.
High Power Density & Superior Discharge Capability:
Deliver peak power on demand. With a high discharge current capability, this LTO Battery Pack provides the necessary surge for start-ups and heavy loads, ensuring consistent performance for all your high-power equipment.
Flexible & Smart BMS Integration:
Tailor the protection to your system. This LTO Battery Pack is BMS-ready, allowing you to integrate a Battery Management System that perfectly matches your voltage and temperature cut-off requirements. The inclusion of an NTC thermistor allows for precise thermal monitoring, making this a smart and secure LTO Battery Pack.
Ideal Applications:
Automated Guided Vehicles (AGVs)
Industrial Robotics and Automation Systems
Electric Vehicles, Scooters, and Specialized Mobility
Backup Power Systems & UPS
Select the LTO Battery Pack that ensures optimal performance, safety, and durability. By focusing on the superior attributes of Lithium Titanate technology, we have created an LTO Battery Pack that stands apart in a crowded market.
